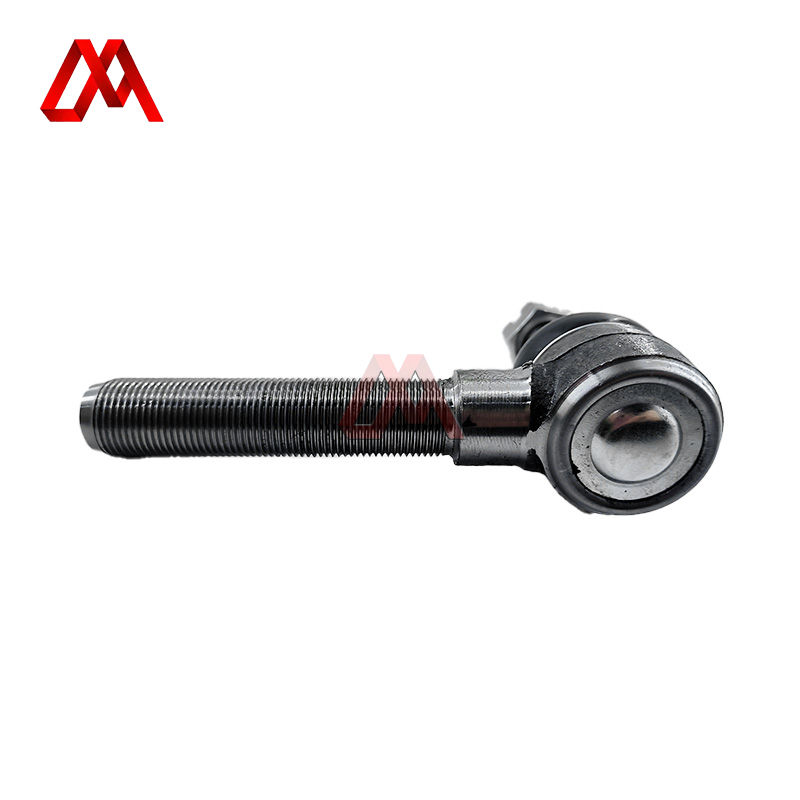

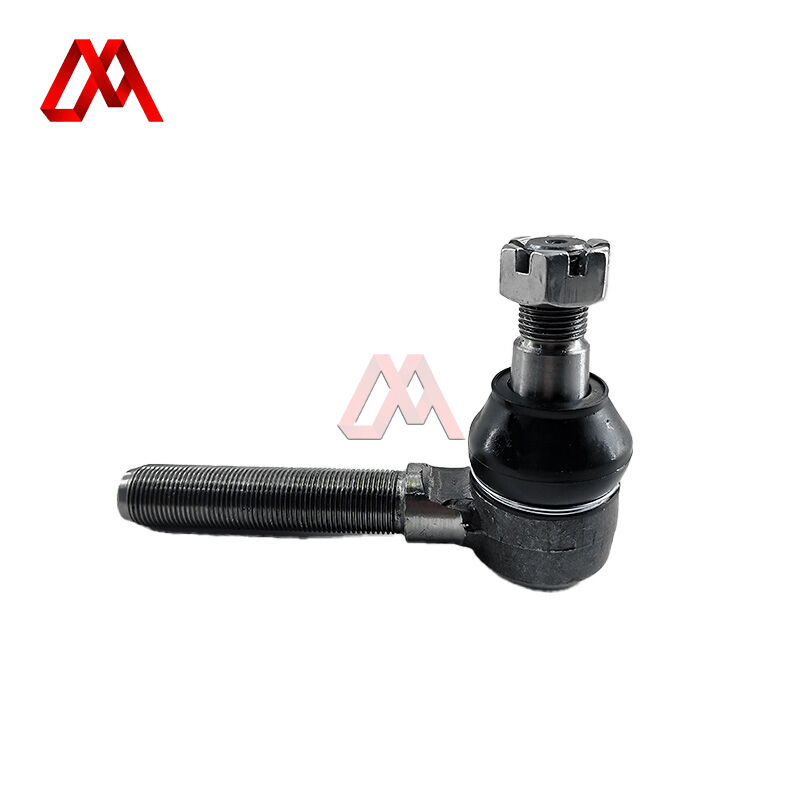

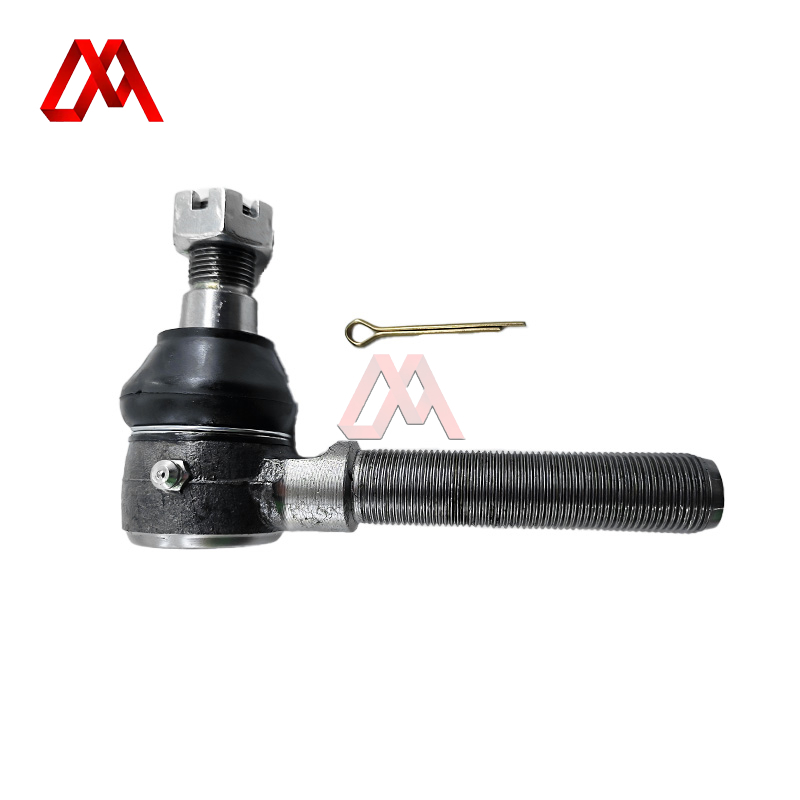

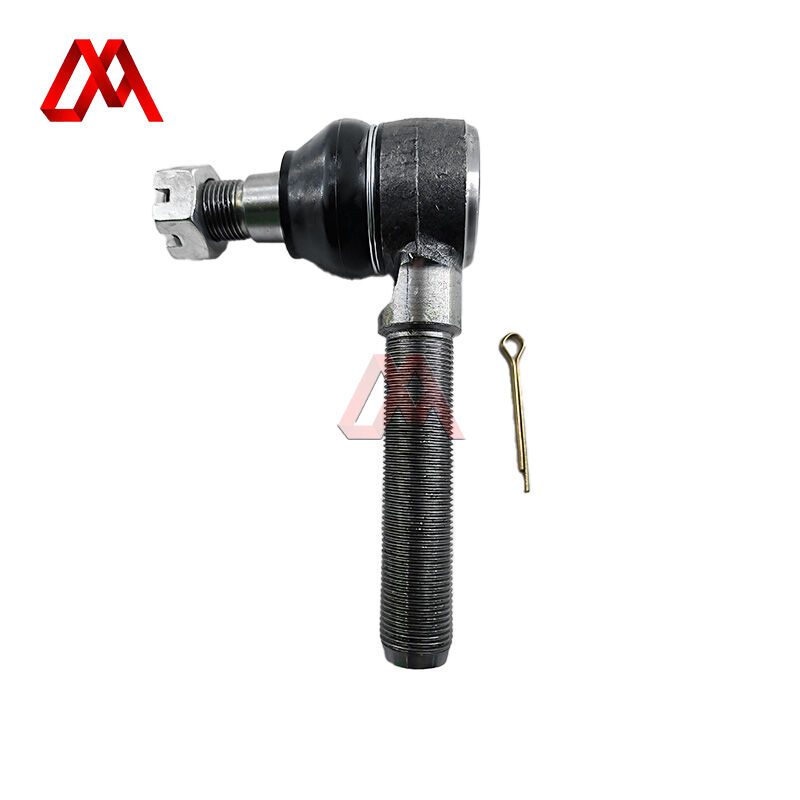

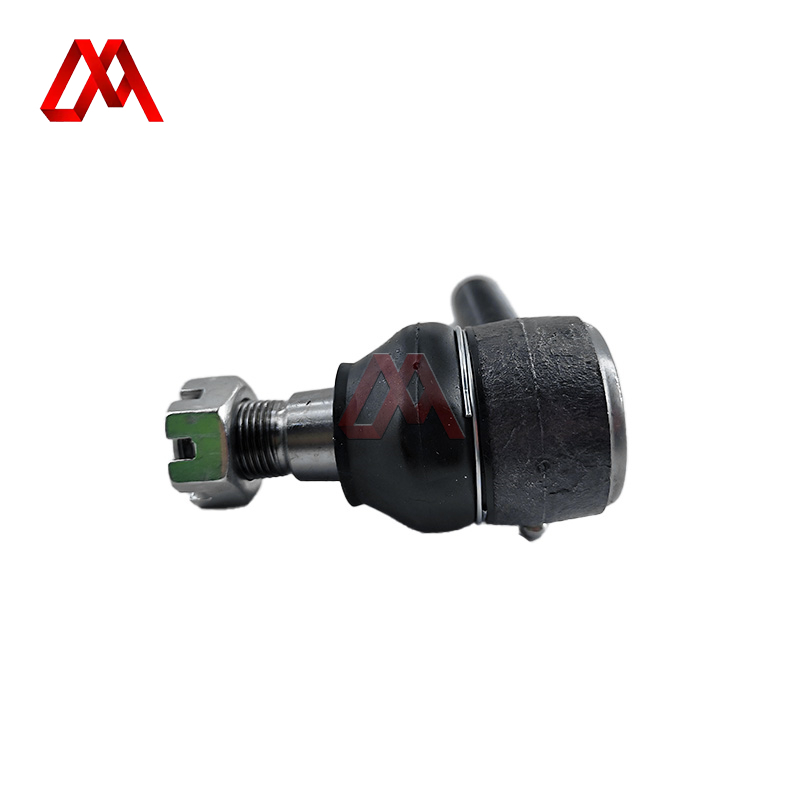

1-43150679-2 1431506792 Tie Rod Rod End for ISUZU 6HH1 FSR33

Isuzu Part No:

1431506792

Isuzu Part No:

1-43150679-2

Part Name:

ROD END; TIE ROD

Model:

ISUZU FSR33

Engine Model:

6HH1

Net Weight:

0.79KG

The Tie Rod Rod End is an essential component of a truck’s steering system. It connects the steering rack to the steering knuckle, allowing for precise control of the vehicle's direction. The rod end is part of the tie rod assembly, and it plays a crucial role in ensuring smooth steering and responsive handling. Over time, wear and tear can affect its performance, so it's important to monitor its condition.

Several signs can indicate a problem with the tie rod rod end. If you notice any of the following, it may be time for inspection or replacement:

1. Steering Wheel Play or Vibration

   • Excessive play in the steering wheel or unusual vibrations during driving can be caused by worn-out tie rod ends, which affect the steering response.

2. Uneven Tire Wear

   • If the vehicle’s tires show uneven or excessive wear, particularly on the inner or outer edges, it could indicate a misalignment caused by a worn tie rod end.

3. Clunking or Popping Noises

   • A clunking or popping sound when turning the steering wheel, especially while driving at low speeds, could suggest that the tie rod end is damaged or has loose components.

4. Steering Pulling to One Side

   • If the truck pulls to one side during driving, it may be due to a failing tie rod end that affects the alignment and direction of the wheels.

5. Loose or Stiff Steering

   • A loose or stiff steering wheel, especially when turning, can indicate problems with the tie rod end that prevent proper steering response.

If the tie rod end is worn or damaged, follow these steps to replace it:

1. Preparation

   • Park the vehicle on a flat surface and secure it with the parking brake. Lift the front of the truck using a jack and support it with jack stands.

   • Gather the necessary tools: a socket wrench, tie rod puller, grease, new tie rod end, and gloves.

2. Remove the Old Tie Rod End

   • Begin by removing the wheel to access the steering components.

   • Use a wrench to disconnect the tie rod end from the steering knuckle or control arm. A tie rod puller tool can help separate the tie rod end from the steering knuckle without damaging other parts.

   • Mark the position of the tie rod on the steering rack to ensure proper alignment when installing the new one.

3. Install the New Tie Rod End

   • Attach the new tie rod end to the steering knuckle, ensuring it’s securely fastened. If the new tie rod end has a nut, tighten it according to the manufacturer’s torque specifications.

   • Grease the new tie rod end to prevent premature wear.

4. Alignment Check and Adjustment

   • After installing the new tie rod end, it’s crucial to have the vehicle’s wheel alignment checked and adjusted. Misalignment can lead to uneven tire wear and handling issues.

5. Test the Steering

   • Once the new tie rod end is installed and the alignment is adjusted, test the steering to ensure smooth operation and proper response. Drive the vehicle at low speed to check for any unusual sounds or steering issues.

6. Final Inspection

   • Inspect the newly installed tie rod end for proper fit and function. Monitor for any changes in steering performance over the next few days to ensure everything is working correctly.

Replacing a worn or damaged Tie Rod Rod End is crucial for maintaining safe and responsive steering. Regular checks and timely replacements will help ensure your vehicle remains safe and easy to handle on the road.
